We are Manufacturer, Supplier, Exporter (Sales & Services Provider) of Open Canopy (Single Pallet / Pallet Changer) Fiber Laser Cutting Machines, Sheet Metal / Metal Laser Cutting Machines, CNC / Fiber Laser Cutter Machines, Parts / Accessories at Reasonable Price / Cost form Pune, Maharashtra, India.
The open canopy machine has a rigid structure and equipped with supreme quality components for proficient operation. Available in various sizes and customisable as per requirements.
The open canopy has a rigid structure and equipped with supreme quality components and unitary aluminium gantry for proficient operation. The new generation fiber laser cutting machine is a smart solution for intelligent manufacturing and offering high precision with better productivity. The machine is available in various sizes and customisable as per requirements.
|

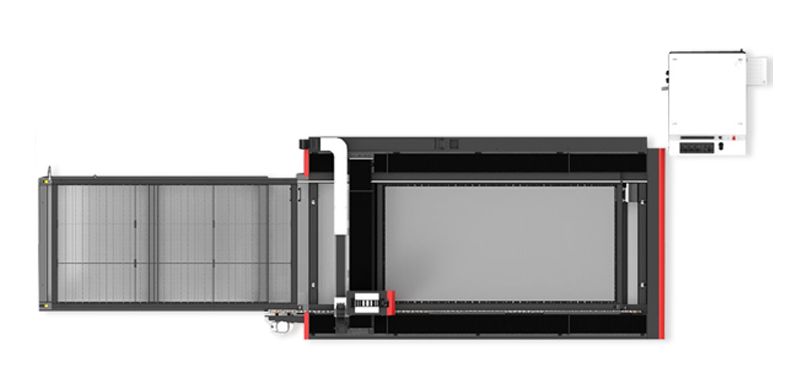

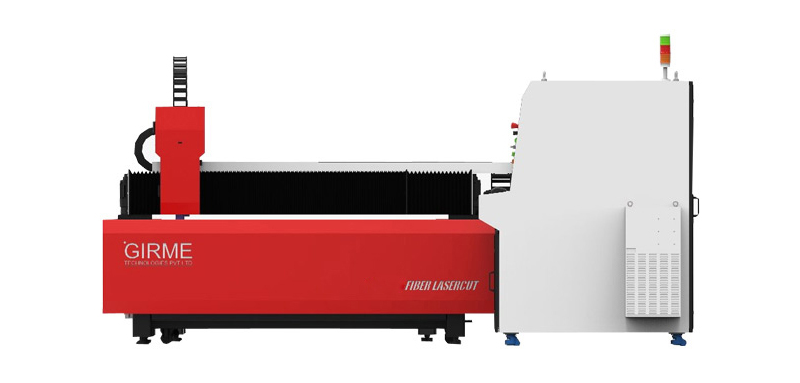

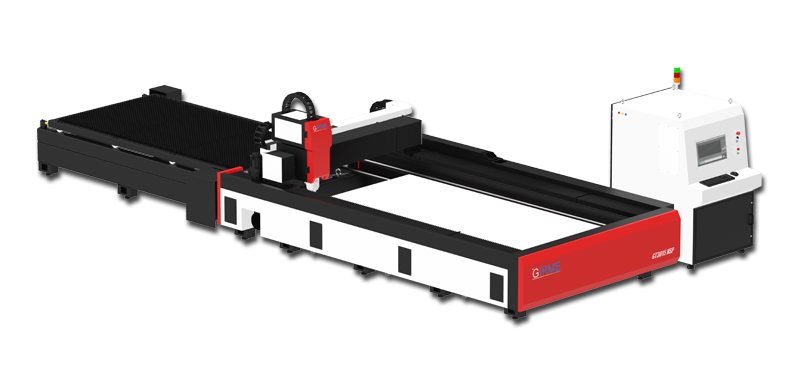

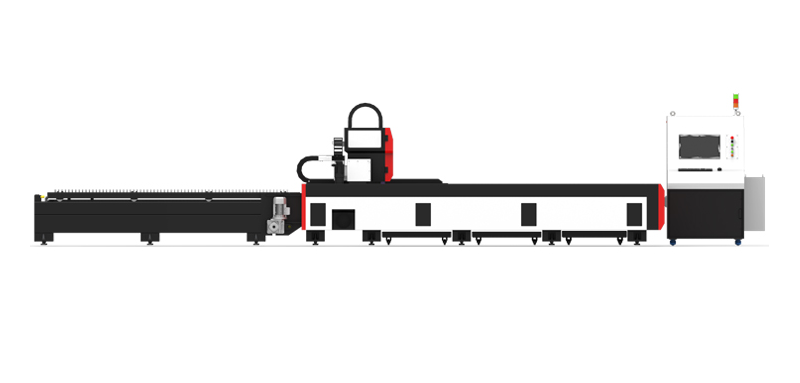

OPEN CANOPY SPECIFICATIONS
|
||||||
|---|---|---|---|---|---|---|
| TECHNICAL PARAMETERS | ||||||
| UNIT | VARIANT | |||||
| PARAMETERS | GT 3015 | GT 4020 | GT 6020 | GT 6525 | GT 8030 | |
| Working Area | mm | 3050 x 1550 | 4050 x 2050 | 6050 x 2050 | 6550 x 2550 | 8050 x 3050 |
| Laser Power | kW | 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 10 / 12 | ||||
| X / Y axis positioning accuracy | mm |
±0.05 |
||||
| X / Y axis repositioning accuracy | mm |
±0.03 |
||||
| Max Speed | m / min | 60 / 80 / 100 / 120 / 150 | ||||
| Max Acceleration | G | 0.8 / 1.0 / 1.2 / 1.5 | ||||
